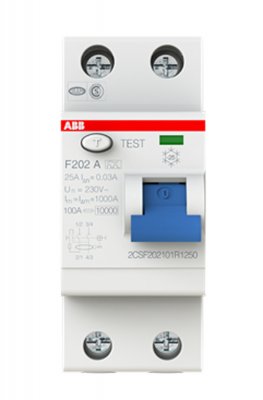

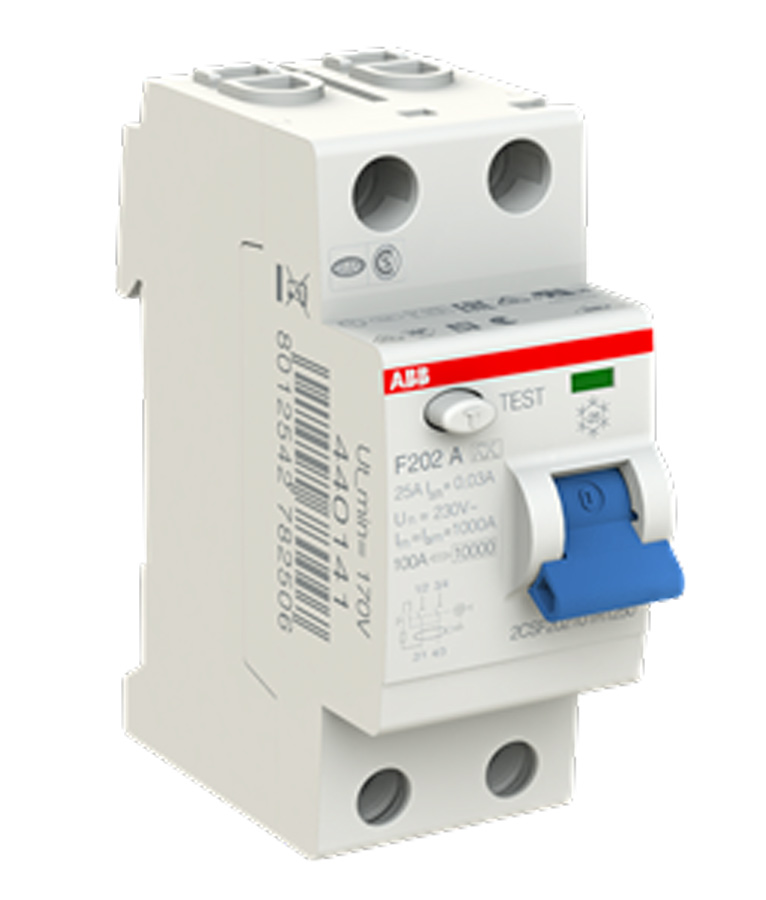

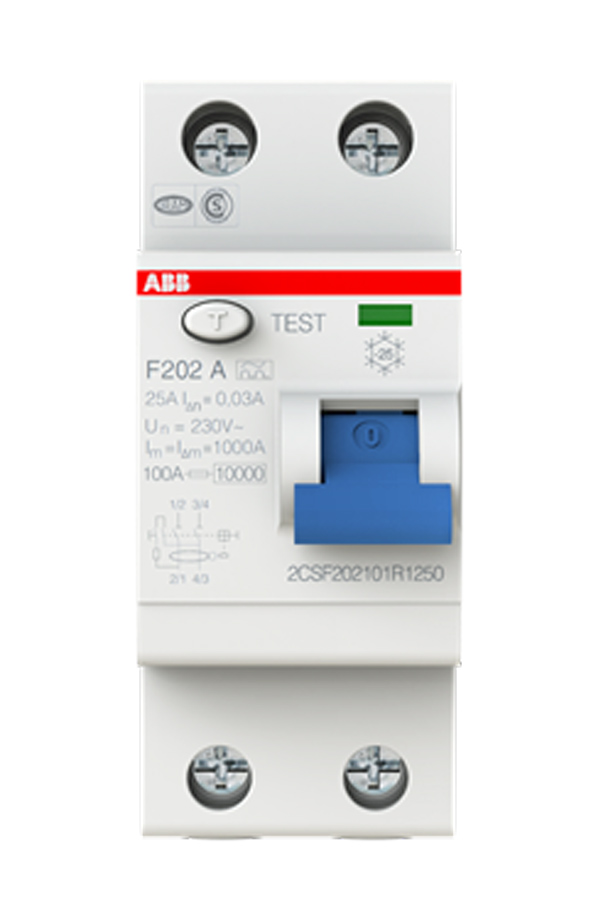

ABB Jordfelsbrytare F202 A 2-polig 25A 30mA
Jordfelsbrytarse F202 garanterar skydd för människor och anläggningar mot felström till jord. Ett stort erbjudande av vanliga momentana samt selektiva AC och A-typer kompletteras med vissa konfigurationer för speciella applikationer.
Teknisk data
- Standards:IEC/EN 61008, UL 1053
Type of Residual Current: A type
Rated Voltage (Ur): 230 V
Rated Operational Voltage: 230 V
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Input Voltage Type: AC
Rated Current (In): 25 A
Rated Residual Current: 30 mA
Rated Conditional Short-Circuit Current (Inc): 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): 1 kA
Leakage Current Type: A
Rated Frequency (f): 50 / 60 Hz
Power Loss: at Rated Operating Conditions per Pole 1 W
Power Supply Connection: Arbitrary
Electrical Endurance: 10000 cycle
Number of Poles: 2
Operating Characteristic: Instantaneous
Mounting Type: DIN rail
